Mutiara Metal Enterprise SDN BHD - Kothabaru, Malaysia

Mutiara Versatile Dek

Manufacturer of
Metal Roofing Sheets
Sample image

Mutiara Versatile Dek is a superior light weight roll-formed roofing and wall cladding profile to meet all your designing needs

Lengths: All products are available from, DURO Distributors in lengths up to 21 meters custom-cut to your length requirements. Length requirements. Lengths longer than 21 meters can be supplied, provided satisfactory transport and on-site handling can be arranged.

Tolerances: Length: +0, - 15mmCover width: +_4mm

Packing: Sheets are packed in strapped bundles of one tonne maximum mass

Minimum Roof Slope: The normal recommended minimum roof slope is 1 in 20 (approximately 30) However, in non-cyclonic areas where roofs are in single sheet lengths, with a run of less than 15 meters, a minimum roof slope of 1 in 30 (approximately 20) may be used. For recommended slope of roofs in cyclonic areas, please consult out DURO Distributor’s Office.

Profile Specifications

Zincalume® Steel Colorlume Steel Zincalume® Steel Colorlume Steel Zincalume® Steel Colorlume Steel Zincalume® Steel Colorlume Steel Zincalume® Steel Colorlume Steel
Base Metal Thickness (mm) 0.20 0.25 0.30 0.35 0.42
Total Coated Thickness (mm) 0.25 0.30 0.35 0.40 0.47
Mass Per Unit Area (kg/m2) 2.09 2.16 2.56 2.63 3.04 3.11 3.51 3.58 4.17 4.24
Mass Per Unit Length (kg/m2) 1.59 1.64 1.95 2.00 2.31 2.36 2.67 2.72 3.17 3.22
Coverage (m2/t) 478 462 390 379 329 322 285 279 240 236

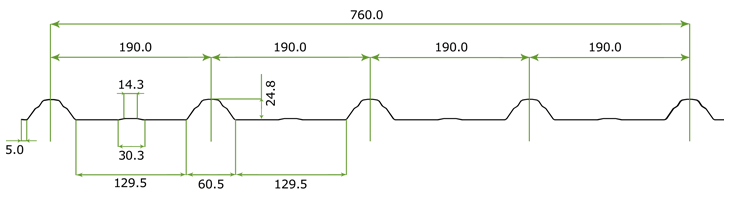

Technical Drawings
